Contessa - Picatinnyskinne Sako 75/85 S-SM

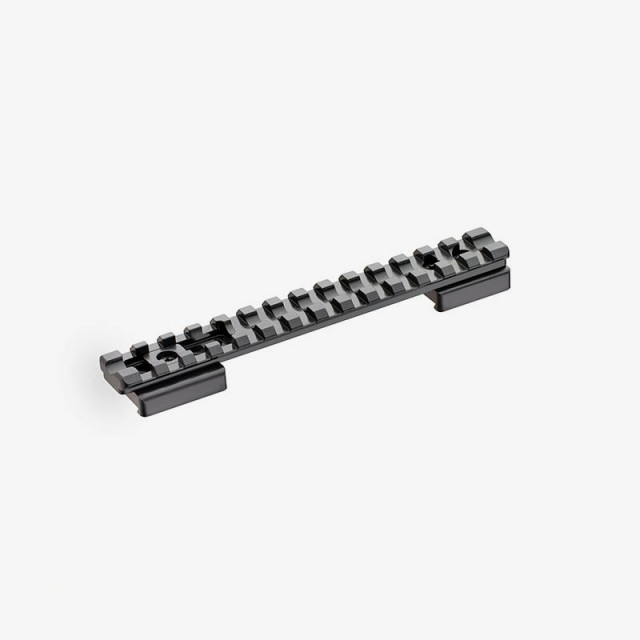

Contessa Picatinny Rail for Sako 75/85 Short
With 0 MOA
Fits Sako Models: L461 / L579 / S491 / M591 / I - III / 75 / 85 (Check the size of your action)
Rail Length: - 134mm
Height (BH) - 11.5mm
Weight: - 156g
Material: - Steel
Code Ref: PH12/0
- 1x Steel Rail,
- 1x Wrench,
This Steel Picatinny Rail is precision made by Contessa Alessandro & C. s.n.c. The part is precision made to fit the rifle with exact dovetail spacing to fit to the rifle with the supplied wrench. This full length rail has two dovetail clamping blocks which attach to the tapered dovetails either side of the ejection port on your Sako rifle.
You can't always tell which size Sako action you have from the calibre, so to check which rail fits your rifle all you need to do is measure the length between your two bases, i.e. measure the length of your ejection port.
If it's approx. 70-74mm you need the Sako Short Rail.
If it's approx. 80-84mm you need the Sako Medium Rail.
If it's approx. 90-94mm you need the Sako Long Rail.
Distance Spacing: (distances between bases)
30mm (Dovetail Base) / 74mm / 30mm (Dovetail Base)
